Brief introduction about shale shaker screen
Shale shaker screen is the critical parts or spare parts for solids control system. It is screen panels fit on shale shakers. As shale shaker is the chief defense of solids removal during well drilling, shaker screen quality will definitely affect shaker performance much.
We applies the most advanced technologies manufacturing various screen panels designed for shale shakers with mesh sizes from API 20 to API 325. We also offer screen panels for all models of the screen shakers manufactured by Brandt, , M-I SWACO, KEMTRON etc. We can fabricate customized screen panels, with sizes and specifications as requested by clients.
What API Size Shaker Screen available from us
| D 100 Separation(Micron) | API Screen Number |
| >1850.0 TO 2180.0 | API 10 |
| >780.0 TO 925.0 | API 20 |
| > 462.5 TO 550.0 | API 35 |
| > 390.0 TO 462.5 | API 40 |
| > 275.0 TO 327.5 | API 50 |
| > 231.0 TO 275.0 | API 60 |
| > 196.0 TO 231.0 | API 70 |
| > 165.0 TO 196.0 | API 80 |
| > 137.5 TO 165.0 | API 100 |
| > 116.5 TO 137.5 | API 120 |
| > 98.0 TO 116.5 | API 140 |
| > 82.5 TO 98.0 | API 170 |
| > 69.0 TO 82.5 | API 200 |
| > 58.0 TO 69.0 | API 230 |
| > 49.0 TO 58.0 | API 270 |
| > 41.5 TO 49.0 | API 325 |

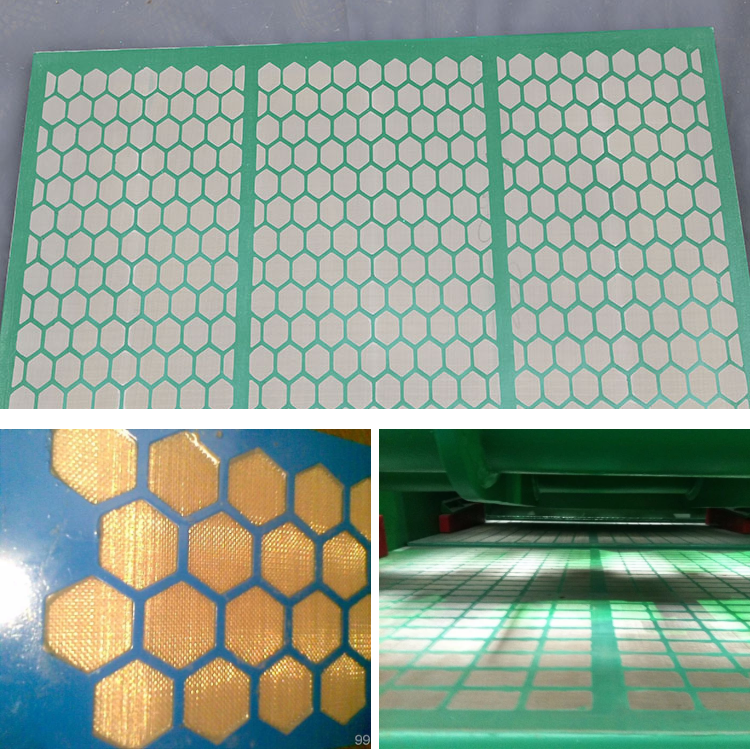

____________________Steel Frame Shaker Screen____________________
Steel Frame shaker screen panels use 304 or 316 stainless steel, it infinitely enhance the screen intensily and endurance, get a better filtering effective. each screen attach a specifical rubber plug together to repair damage, can save the time to replace the screen, increase the efficiency and reduce the cost.
____________________Composite Shaker Screen____________________
Composite shaker screen use the 304 stainless steel materials. are constructed with 2-4 wire cloth layers combined compositely together, without steel backing plate, can get an effective filtering area and save the shaker screen lifetime.
Main Technical Parameters
| Brandt Series Screen |
| Mesh | API20---API325 |
| Dimension | Length:1251mm (49 1/5”) |
| Width: 635mm (24 4/5”) |
| Weight | Steel frame: 13kg (28.6lb) |
| Composite frame: 12kg (26.4lb) |
| Screen layer | 2 or 3 Layers |
| Wire mesh material | S.S304 ,S.S316 (Customizable) |
| Frame material | Carbon steel, Composite material |
| Swaco Mongoose Series Screen |
| Mesh | API20---API325 |
| Dimension | Length:1165mm (45 9/10”) |
| Width: 585mm (23”) |
| Weight | Steel frame: 13kg (28.6lb) |
| Composite frame: 12kg (26.4lb) |
| Screen layer | 2 or 3 Layers |
| Wire mesh material | S.S304 ,S.S316 (Customizable) |
| Frame material | Carbon steel, Composite material |
